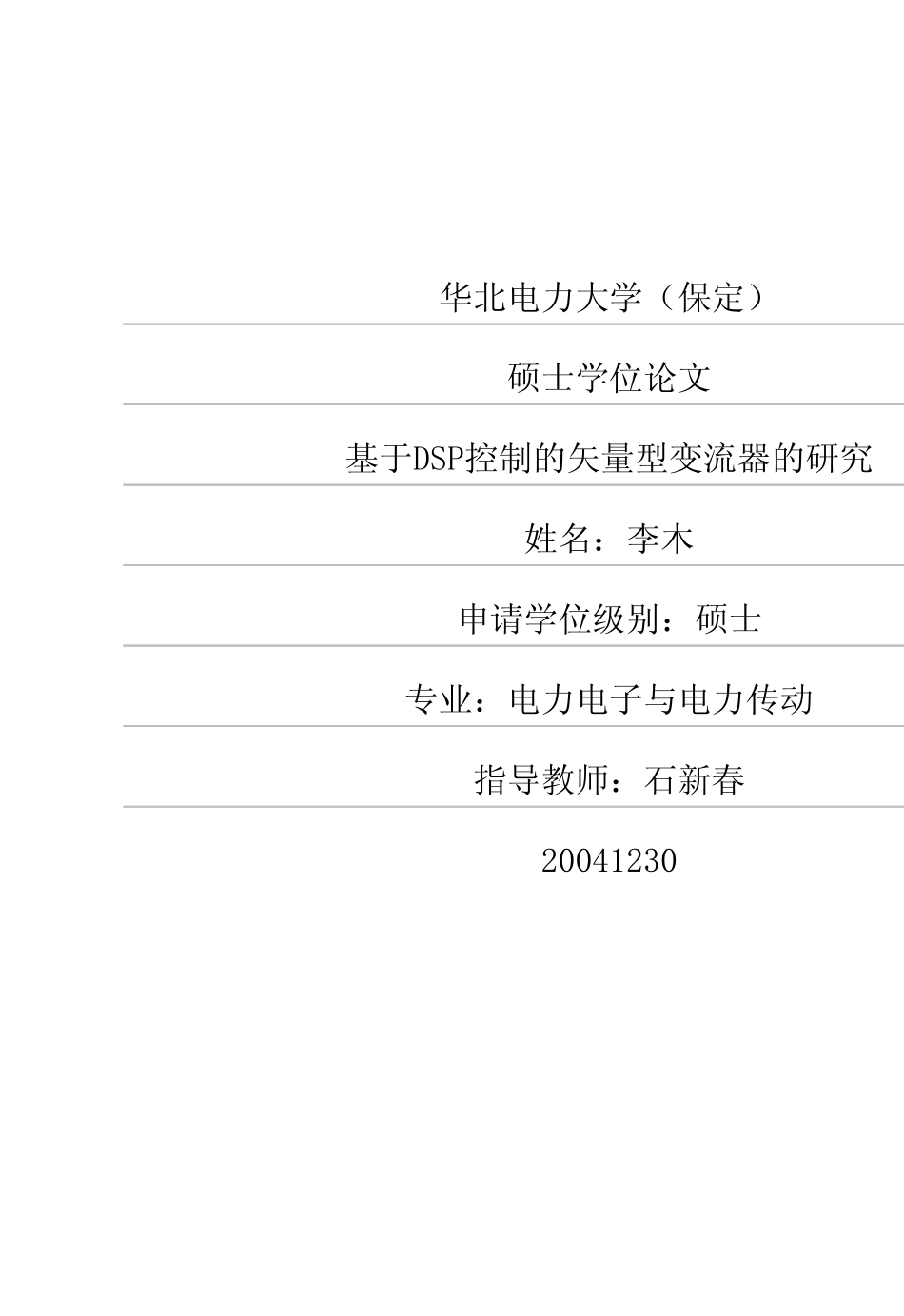

华北电力大学(保定)硕士学位论文基于DSP控制的矢量型变流器的研究姓名:李木申请学位级别:硕士专业:电力电子与电力传动指导教师:石新春20041230华北电力大学硕士学位论文摘要摘要本文对三相电压型高功率因数PWM变流电路进行了理论分析和仿真、试验研究。对三电平电压型?WM变流器的数学模型、工作原理及其控制方法进行阐述。在此基础上,采用基于空间矢量SVPWM控制策略,以及瞬时无功功率理论、CORDIC算法,应用于三相电压型PWM高功率因数整流器的控制,通过MATLAB仿真证明了此方法的有效性。其次,分析了三相电压型变流器的原理、模型、控制方法并着重研究其PWM触发脉冲控制信号发生技术,并以DSP、CPLD等芯片搭接了硬件试验电路,产生了正确地触发脉冲信号,试验结果证明了设计的合理性。关键词:三电平,电压型变流器,SVPWM,DSPAbstractThispaperanalysesintheory,simulatesandstudiesthethree—levelvoltagesourceandthree-levelcurrentsourcehighpowerfactorPWMconverterFirstly,themathematicalmodel,theoperatingprincipleandthemethodofcontrolofthethree—levelvoltagesourceconverterareexplained.Onthebasisofthis,thehysteresiscurrentcontroller(HCC)andthespacevectormodulation【SVM),asthepopulartechniquesatpresent,arecombinedandappliedtOthecontrolofthree—levelvoltagesourcehighpowerfactorPWMrectifier.Thistechniquereducessignificantlythenumberofswitchingandtheswitchingloss.ThevalidityofthistechniqueisprovedbyMATLABsimulation.Secondly,theoperatingprincipleandthemathematicalmodelandthecontrolmethodaboutthethree—levelvoltagesourcehighpowerfactorPWMconverterareanalysed.ThegenerationofthePWMtriggingpulsecontrolsignalareintroducedemphatically.Onthebasisofthis,thehardwareexperimentationcircuitsarebuiltwithDSPandCPLD,andthetriggingpulsesignalisgeneratedexactly.Thefeasibilityofthecircuitisverifiedbytheexperimentresult.LiMu(PowerElectronicsandPowerDrivers)Directedbyprof.ShiXinchunKeywords:three—level,voltagesourceconverter,svpwm,dsp声明本人郑重声明:此处所提交的硕士学位论文《基于DSP控制的矢量型变流器的研究》,是本人在华北电力大学攻读硕士学位期间,在导师指导下进行的研究工作和取得的研究成果。据本人所知,除了文中特别加以标...
