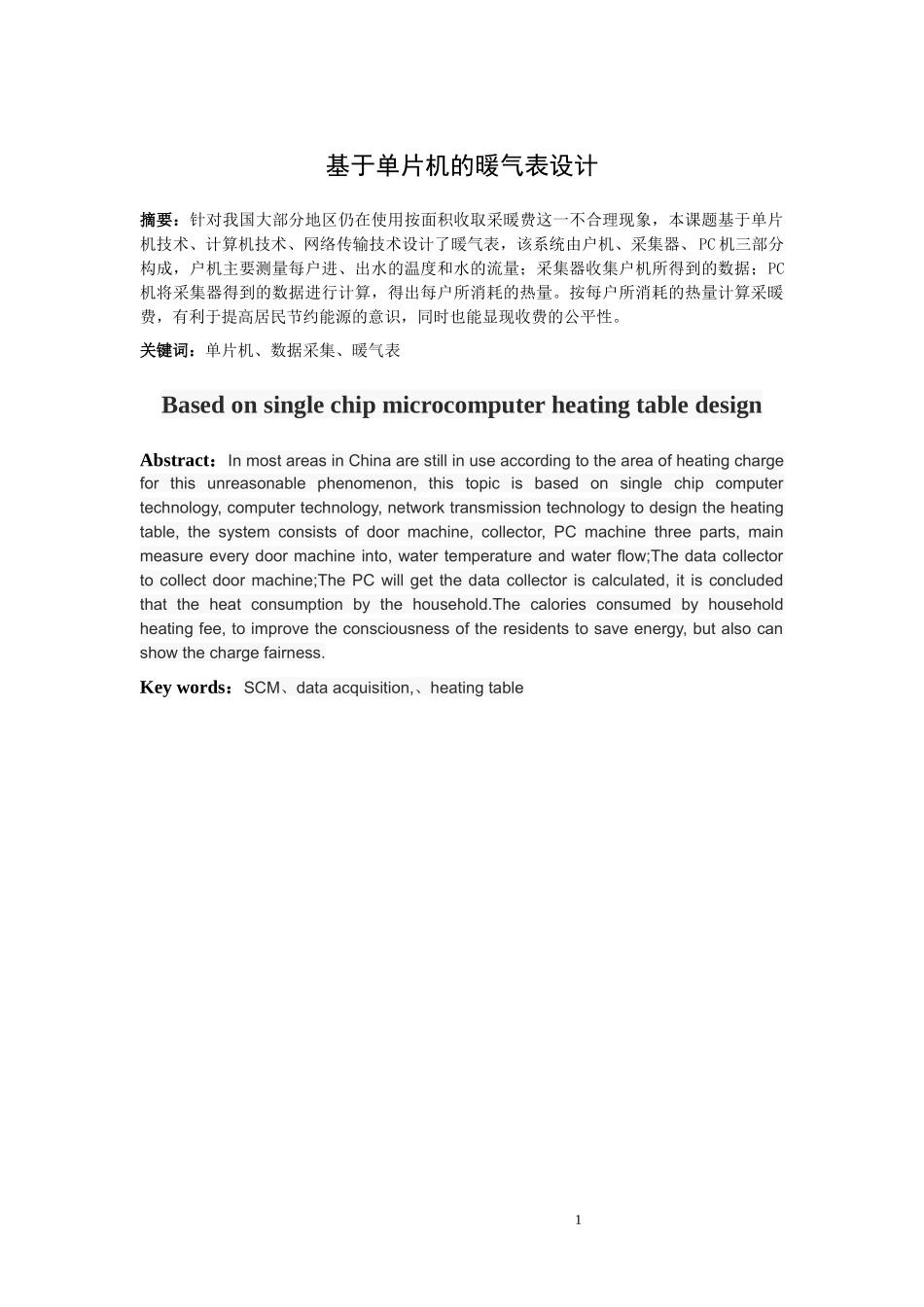

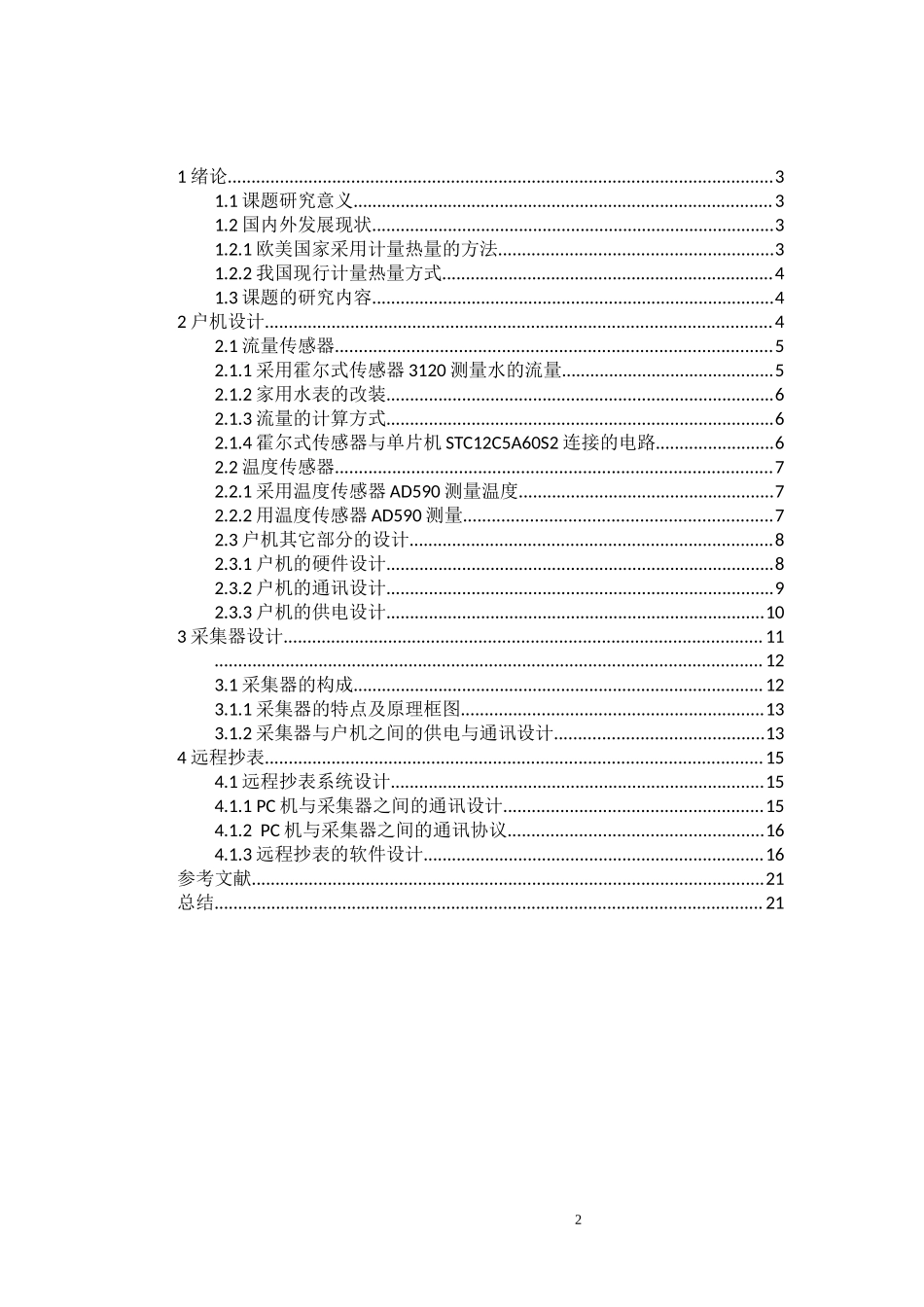

1基于单片机的暖气表设计摘要：针对我国大部分地区仍在使用按面积收取采暖费这一不合理现象，本课题基于单片机技术、计算机技术、网络传输技术设计了暖气表，该系统由户机、采集器、PC机三部分构成，户机主要测量每户进、出水的温度和水的流量；采集器收集户机所得到的数据；PC机将采集器得到的数据进行计算，得出每户所消耗的热量。按每户所消耗的热量计算采暖费，有利于提高居民节约能源的意识，同时也能显现收费的公平性。关键词：单片机、数据采集、暖气表BasedonsinglechipmicrocomputerheatingtabledesignAbstract：InmostareasinChinaarestillinuseaccordingtotheareaofheatingchargeforthisunreasonablephenomenon,thistopicisbasedonsinglechipcomputertechnology,computertechnology,networktransmissiontechnologytodesigntheheatingtable,thesystemconsistsofdoormachine,collector,PCmachinethreeparts,mainmeasureeverydoormachineinto,watertemperatureandwaterflow;Thedatacollectortocollectdoormachine;ThePCwillgetthedatacollectoriscalculated,itisconcludedthattheheatconsumptionbythehousehold.Thecaloriesconsumedbyhouseholdheatingfee,toimprovetheconsciousnessoftheresidentstosaveenergy,butalsocanshowthechargefairness.Keywords：SCM、dataacquisition,、heatingtable21绪论...................................................................................................................31.1课题研究意义.........................................................................................31.2国内外发展现状.....................................................................................31.2.1欧美国家采用计量热量的方法..........................................................31.2.2我国现行计量热量方式......................................................................41.3课题的研究内容.....................................................................................42户机设计...........................................................................................................42.1流量传感器............................................................................................52.1.1采用霍尔式传感器3120测量水的流量...
