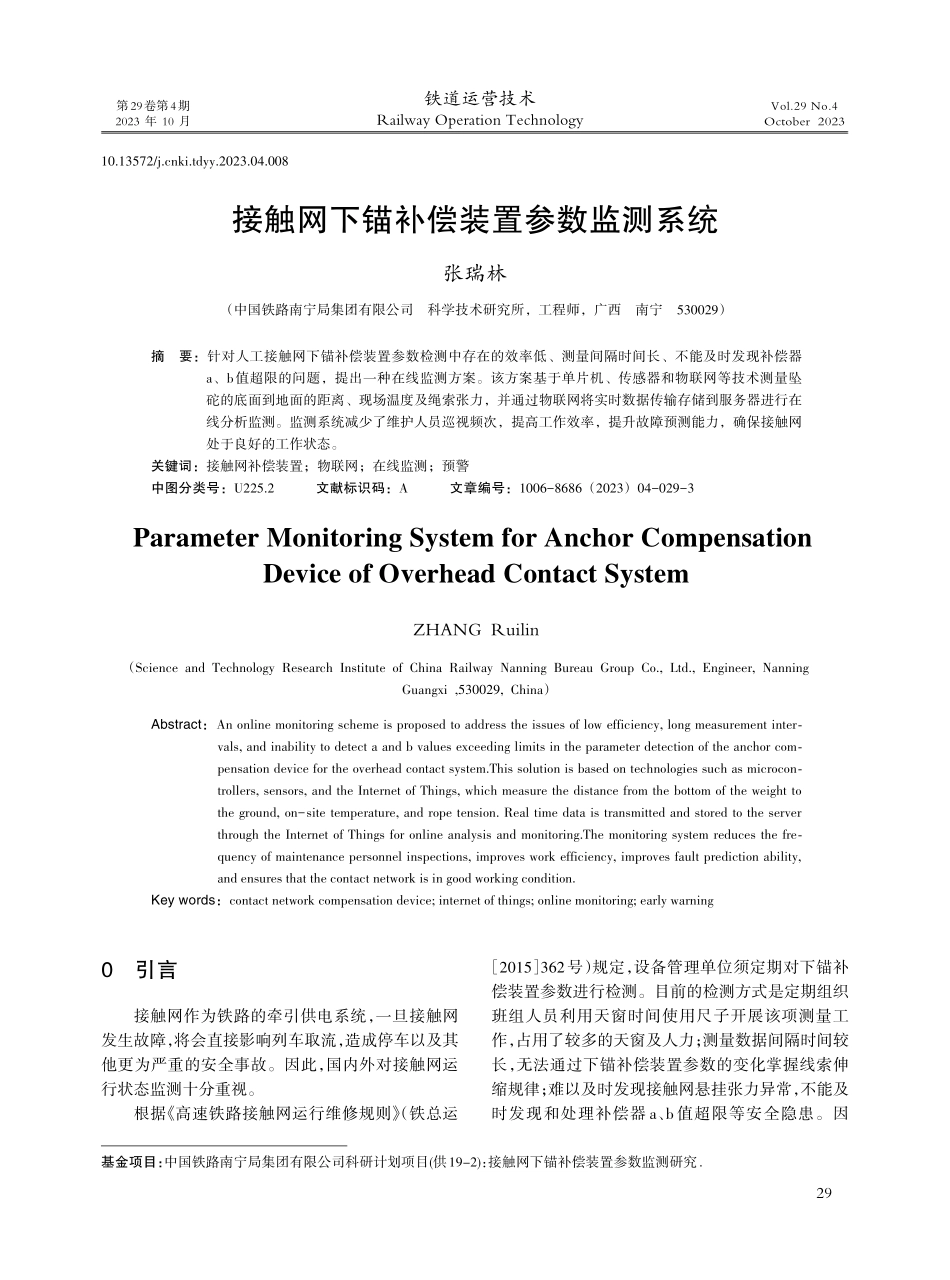

第29卷第4期2023年10月Vol.29No.4October2023铁道运营技术RailwayOperationTechnology摘要:针对人工接触网下锚补偿装置参数检测中存在的效率低、测量间隔时间长、不能及时发现补偿器a、b值超限的问题,提出一种在线监测方案。该方案基于单片机、传感器和物联网等技术测量坠砣的底面到地面的距离、现场温度及绳索张力,并通过物联网将实时数据传输存储到服务器进行在线分析监测。监测系统减少了维护人员巡视频次,提高工作效率,提升故障预测能力,确保接触网处于良好的工作状态。关键词:接触网补偿装置;物联网;在线监测;预警中图分类号:U225.2文献标识码:A文章编号:1006-8686(2023)04-029-3张瑞林接触网下锚补偿装置参数监测系统(中国铁路南宁局集团有限公司科学技术研究所,工程师,广西南宁530029)10.13572/j.cnki.tdyy.2023.04.008Abstract:Anonlinemonitoringschemeisproposedtoaddresstheissuesoflowefficiency,longmeasurementinter⁃vals,andinabilitytodetectaandbvaluesexceedinglimitsintheparameterdetectionoftheanchorcom⁃pensationdevicefortheoverheadcontactsystem.Thissolutionisbasedontechnologiessuchasmicrocon⁃trollers,sensors,andtheInternetofThings,whichmeasurethedistancefromthebottomoftheweighttotheground,on-sitetemperature,andropetension.RealtimedataistransmittedandstoredtotheserverthroughtheInternetofThingsforonlineanalysisandmonitoring.Themonitoringsystemreducesthefre⁃quencyofmaintenancepersonnelinspections,improvesworkefficiency,improvesfaultpredictionability,andensuresthatthecontactnetworkisingoodworkingcondition.Keywords:contactnetworkcompensationdevice;internetofthings;onlinemonitoring;earlywarningZHANGRuilinParameterMonitoringSystemforAnchorCompensationDeviceofOverheadContactSystem(ScienceandTechnologyResearchInstituteofChinaRailwayNanningBureauGroupCo.,Ltd.,Engineer,NanningGuangxi,530029,China)0引言接触网作为铁路的牵引供电系统,一旦接触网发生故障,将会直接影响列车取流,造成停车以及其他更为严重的安全事故。因此,国内外对接触网运行状态监测十分重视。根据《高速铁路接触网运行维修规则》(铁总运[2015]362号)规定,设备管理单位须定期对下锚补偿装置参数进行检测。目前的检测方式是定期组织班组人员利用天窗时间...
