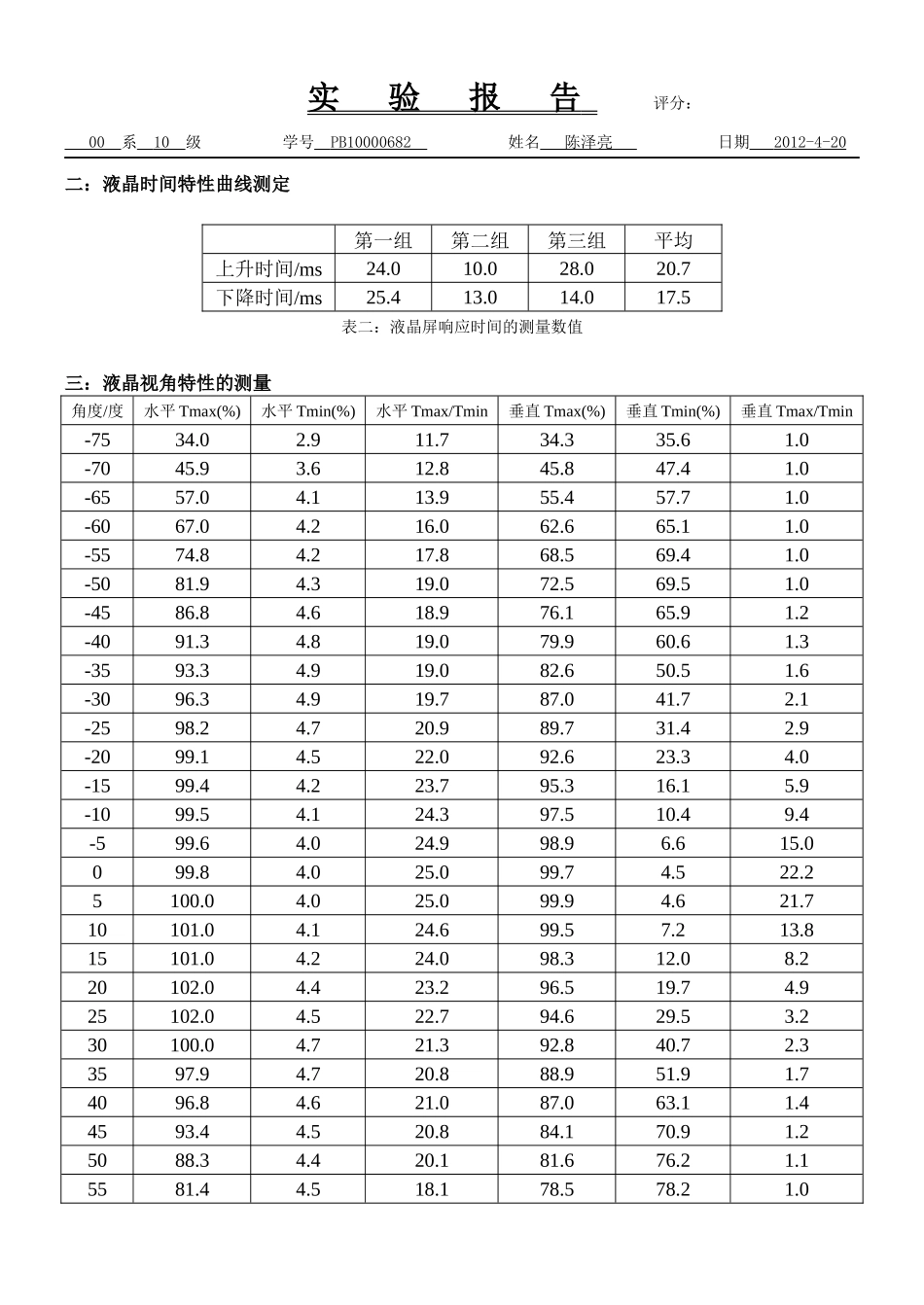

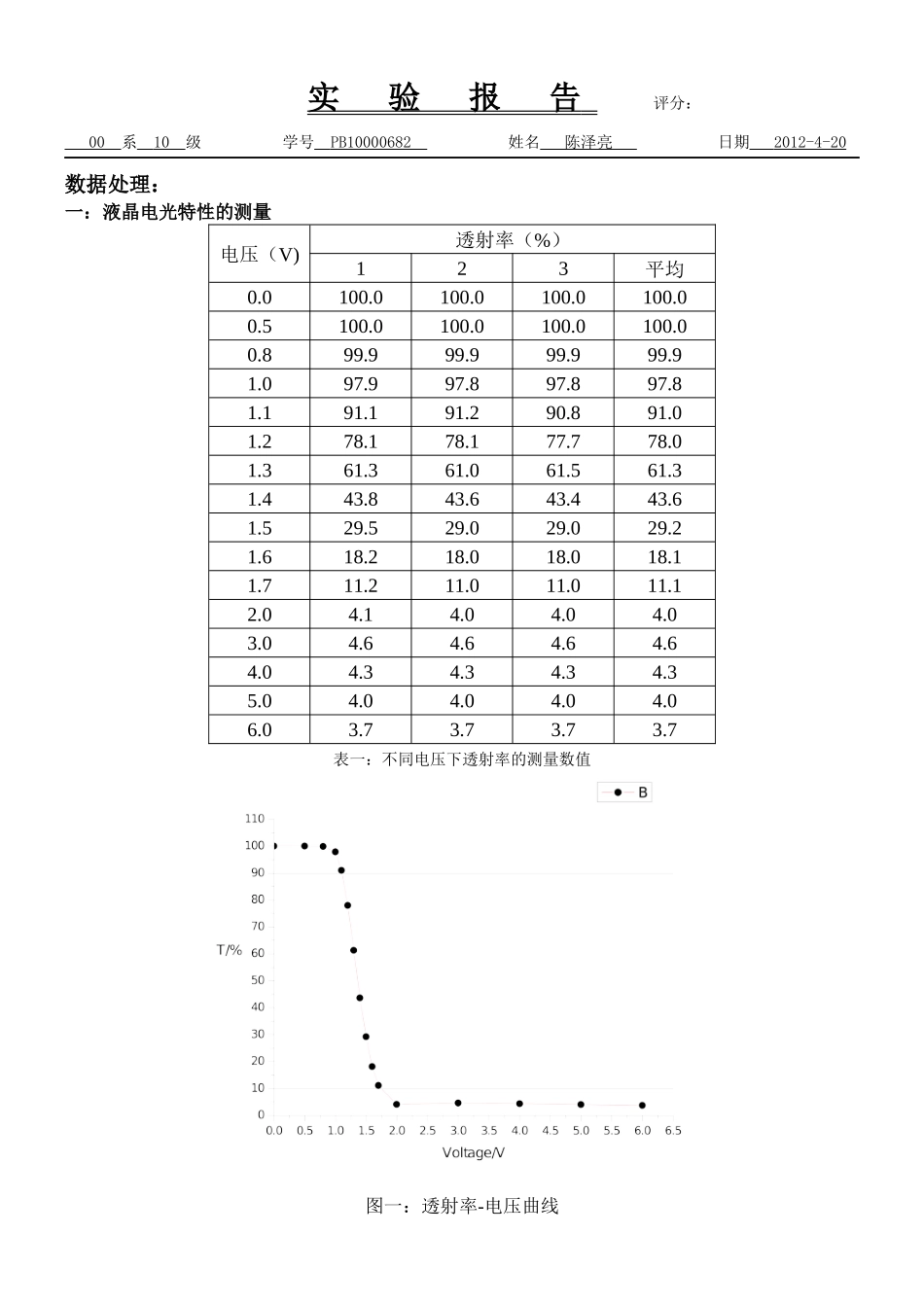

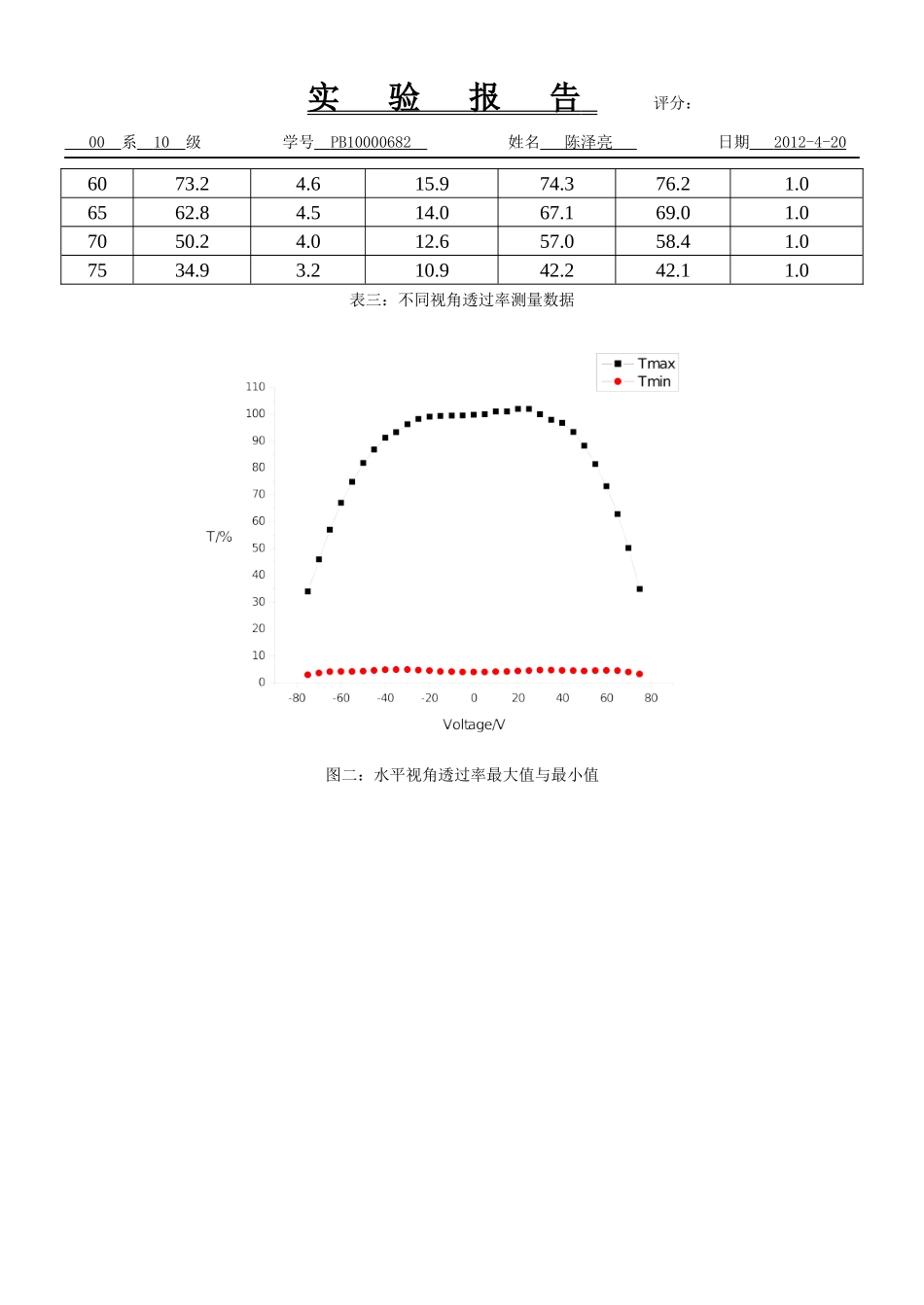

实验报告评分：00系10级学号PB10000682姓名陈泽亮日期2012-4-20数据处理：一：液晶电光特性的测量电压（V)透射率（%）123平均0.0100.0100.0100.0100.00.5100.0100.0100.0100.00.899.999.999.999.91.097.997.897.897.81.191.191.290.891.01.278.178.177.778.01.361.361.061.561.31.443.843.643.443.61.529.529.029.029.21.618.218.018.018.11.711.211.011.011.12.04.14.04.04.03.04.64.64.64.64.04.34.34.34.35.04.04.04.04.06.03.73.73.73.7表一：不同电压下透射率的测量数值图一：透射率-电压曲线实验报告评分：00系10级学号PB10000682姓名陈泽亮日期2012-4-20二：液晶时间特性曲线测定第一组第二组第三组平均上升时间/ms24.010.028.020.7下降时间/ms25.413.014.017.5表二：液晶屏响应时间的测量数值三：液晶视角特性的测量角度/度水平Tmax(%)水平Tmin(%)水平Tmax/Tmin垂直Tmax(%)垂直Tmin(%)垂直Tmax/Tmin-7534.02.911.734.335.61.0-7045.93.612.845.847.41.0-6557.04.113.955.457.71.0-6067.04.216.062.665.11.0-5574.84.217.868.569.41.0-5081.94.319.072.569.51.0-4586.84.618.976.165.91.2-4091.34.819.079.960.61.3-3593.34.919.082.650.51.6-3096.34.919.787.041.72.1-2598.24.720.989.731.42.9-2099.14.522.092.623.34.0-1599.44.223.795.316.15.9-1099.54.124.397.510.49.4-599.64.024.998.96.615.0099.84.025.099.74.522.25100.04.025.099.94.621.710101.04.124.699.57.213.815101.04.224.098.312.08.220102.04.423.296.519.74.925102.04.522.794.629.53.230100.04.721.392.840.72.33597.94.720.888.951.91.74096.84.621.087.063.11.44593.44.520.884.170.91.25088.34.420.181.676.21.15581.44.518.178.578.21.0实验报告评分：00系10级学号PB10000682姓名陈泽亮日期2012-4-206073.24.615.974.376.21.06562.84.514.067.169.01.07050.24.012.657.058.41.07534.93.210.942.242.11.0表三：不同视角透过率测量数据图二：水平视角透过率最大值与最小值实验报告评分：00系10级学号PB10000682姓名陈泽亮日期2012-4-20图三：垂直视角透过率最大值与最小值图四：水平视角对比度-角度曲线实验报告评分：00系10级学号PB10000682姓名陈泽亮日期2012-4-20图五：垂直视角对比度-角度曲线
