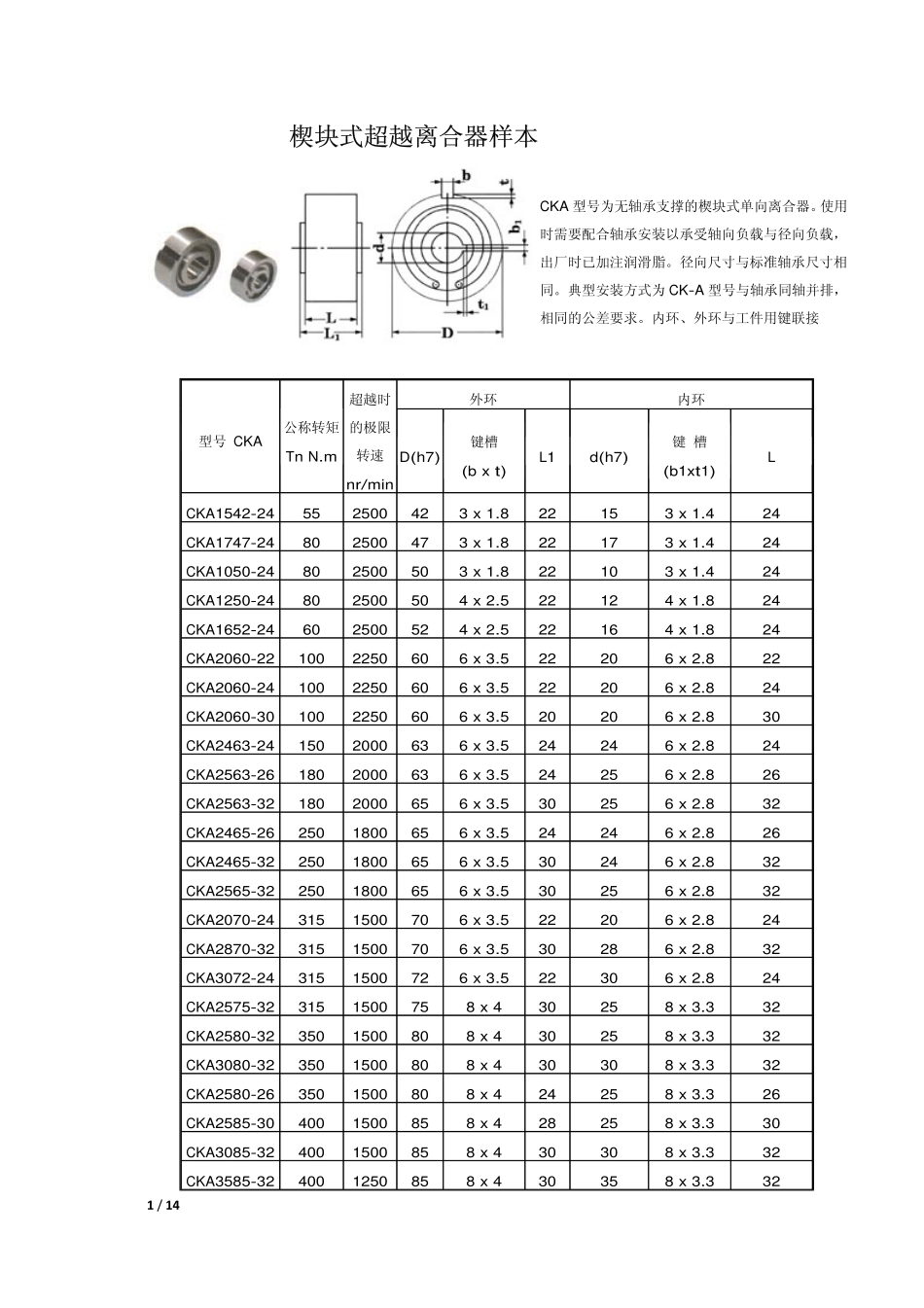

1/14楔块式超越离合器样本CKA型号为无轴承支撑的楔块式单向离合器。使用时需要配合轴承安装以承受轴向负载与径向负载，出厂时已加注润滑脂。径向尺寸与标准轴承尺寸相同。典型安装方式为CK-A型号与轴承同轴并排，相同的公差要求。内环、外环与工件用键联接型号CKA公称转矩TnN.m超越时的极限转速nr/min外环内环D(h7)键槽(bxt)L1d(h7)键槽(b1xt1)LCKA1542-24552500423x1.822153x1.424CKA1747-24802500473x1.822173x1.424CKA1050-24802500503x1.822103x1.424CKA1250-24802500504x2.522124x1.824CKA1652-24602500524x2.522164x1.824CKA2060-221002250606x3.522206x2.822CKA2060-241002250606x3.522206x2.824CKA2060-301002250606x3.520206x2.830CKA2463-241502000636x3.524246x2.824CKA2563-261802000636x3.524256x2.826CKA2563-321802000656x3.530256x2.832CKA2465-262501800656x3.524246x2.826CKA2465-322501800656x3.530246x2.832CKA2565-322501800656x3.530256x2.832CKA2070-243151500706x3.522206x2.824CKA2870-323151500706x3.530286x2.832CKA3072-243151500726x3.522306x2.824CKA2575-323151500758x430258x3.332CKA2580-323501500808x430258x3.332CKA3080-323501500808x430308x3.332CKA2580-263501500808x424258x3.326CKA2585-304001500858x428258x3.330CKA3085-324001500858x430308x3.332CKA3585-324001250858x430358x3.3322/14CKA3590-3245612509010x5303510x3.332CKA4090-3245612509010x5304010x3.332CKA45100-30655125010010x5284510x3.330CKA32100-34655125010010x5323210x3.334CKA35100-34655125010010x5323510x3.334CKA38100-34655125010010x5323810x3.334CKA型号为无轴承支撑的楔块式单向离合器。使用时需要配合轴承安装以承受轴向负载与径向负载，出厂时已加注润滑脂。径向尺寸与标准轴承尺寸相同。典型安装方式为CK-A型号与轴承同轴并排，相同的公差要求。内环、外环与工件用键联接。型号公称转矩超越时的极限转速外环内环质量m/kgD(h7)键槽(bxt)L1d(h7)键槽(b1xt1)LCKA40100-6731512501008x4.0L=20254010x3.6671.46CKA45100-31.531512501002-8x431.5458x3.331.51.54CKA30105-35315125010510x5L=1620308x3.3351.55CKA35105-34315125010510x5L=26323510x3.3341.55CKA35105-3531512501056x3.5253510x3.3351.56CKA25110-3240010001106-Φ932258x3.3322.02CKA30110-34400100011010x532308x3.3341.82CKA35110-34400100011010x5323510x3.334...
