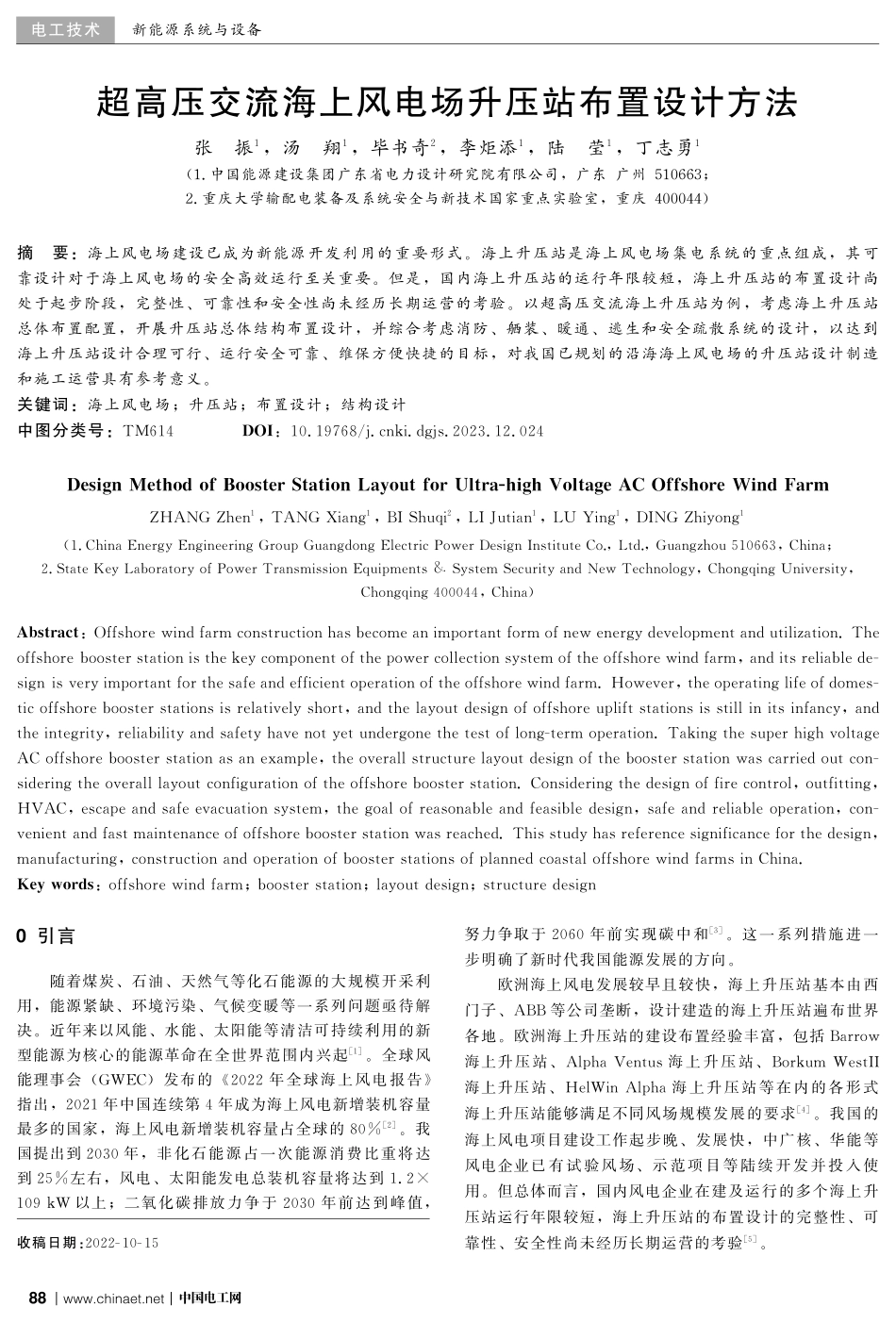

超高压交流海上风电场升压站布置设计方法张振１,汤翔１,毕书奇２,李炬添１,陆莹１,丁志勇１(１．中国能源建设集团广东省电力设计研究院有限公司,广东广州５１０６６３;２．重庆大学输配电装备及系统安全与新技术国家重点实验室,重庆４０００４４)摘要:海上风电场建设已成为新能源开发利用的重要形式.海上升压站是海上风电场集电系统的重点组成,其可靠设计对于海上风电场的安全高效运行至关重要.但是,国内海上升压站的运行年限较短,海上升压站的布置设计尚处于起步阶段,完整性、可靠性和安全性尚未经历长期运营的考验.以超高压交流海上升压站为例,考虑海上升压站总体布置配置,开展升压站总体结构布置设计,并综合考虑消防、舾装、暖通、逃生和安全疏散系统的设计,以达到海上升压站设计合理可行、运行安全可靠、维保方便快捷的目标,对我国已规划的沿海海上风电场的升压站设计制造和施工运营具有参考意义.关键词:海上风电场;升压站;布置设计;结构设计中图分类号:TM６１４DOI:１０．１９７６８/j．cnki．dgjs．２０２３．１２．０２４DesignMethodofBoosterStationLayoutforUltraＧhighVoltageACOffshoreWindFarmZHANGZhen１,TANGXiang１,BIShuqi２,LIJutian１,LUYing１,DINGZhiyong１(１．ChinaEnergyEngineeringGroupGuangdongElectricPowerDesignInstituteCo．,Ltd．,Guangzhou５１０６６３,China;２．StateKeyLaboratoryofPowerTransmissionEquipments&SystemSecurityandNewTechnology,ChongqingUniversity,Chongqing４０００４４,China)Abstract:Offshorewindfarmconstructionhasbecomeanimportantformofnewenergydevelopmentandutilization．Theoffshoreboosterstationisthekeycomponentofthepowercollectionsystemoftheoffshorewindfarm,anditsreliabledeＧsignisveryimportantforthesafeandefficientoperationoftheoffshorewindfarm．However,theoperatinglifeofdomesＧticoffshoreboosterstationsisrelativelyshort,andthelayoutdesignofoffshoreupliftstationsisstillinitsinfancy,andtheintegrity,reliabilityandsafetyhavenotyetundergonethetestoflongＧtermoperation．TakingthesuperhighvoltageACoffshoreboosterstationasanexample,theoverallstructurelayoutdesignoftheboosterstationwascarriedoutconＧsideringtheoveralllayoutconfigurationoftheoffshoreboosterstation．Consideringthedesignoffirecontrol,outfitting,HVAC,escape...
