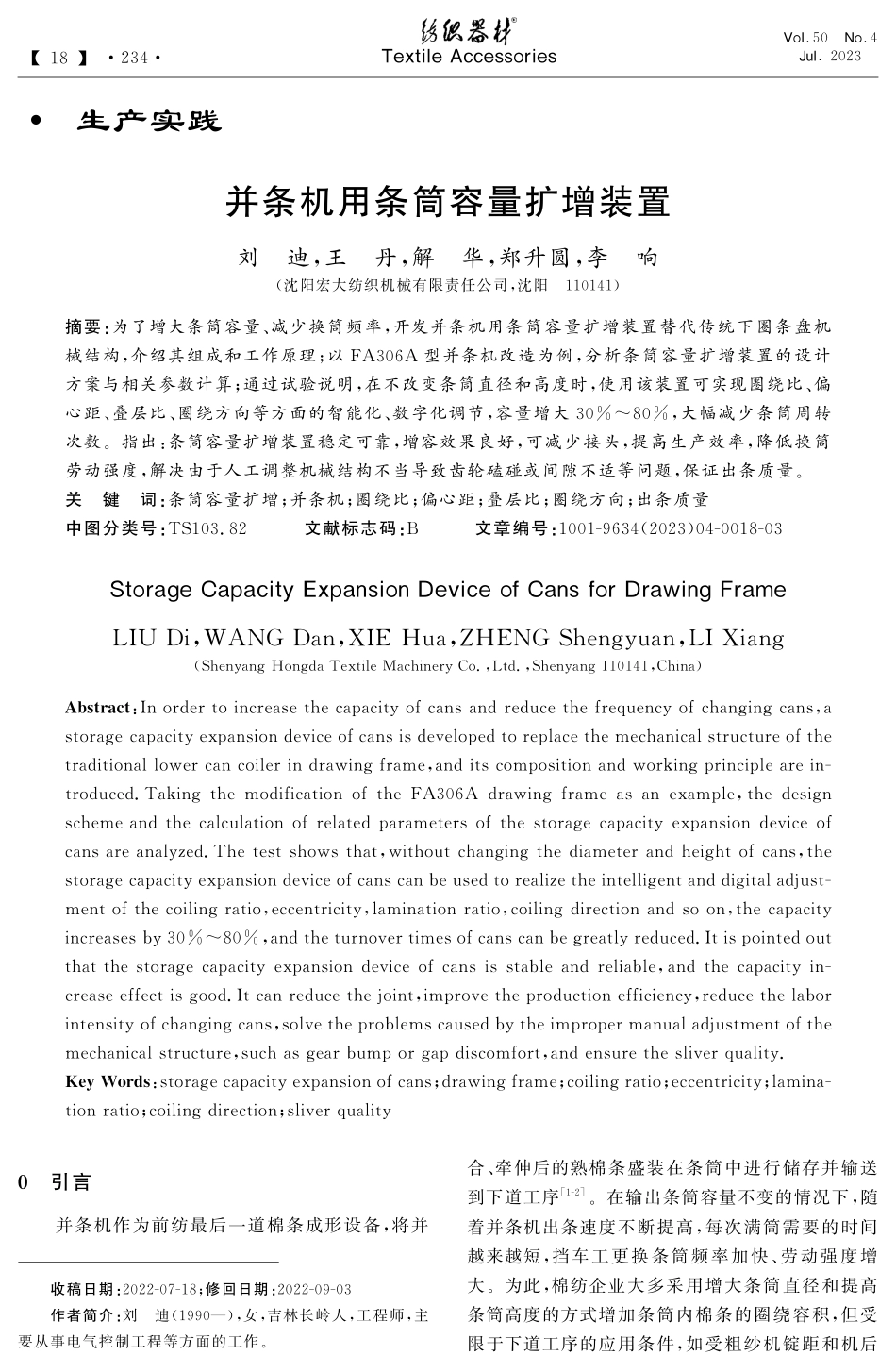

•生产实践并条机用条筒容量扩增装置刘迪,王丹,解华,郑升圆,李响(沈阳宏大纺织机械有限责任公司,沈阳１１０１４１)摘要:为了增大条筒容量、减少换筒频率,开发并条机用条筒容量扩增装置替代传统下圈条盘机械结构,介绍其组成和工作原理;以FA３０６A型并条机改造为例,分析条筒容量扩增装置的设计方案与相关参数计算;通过试验说明,在不改变条筒直径和高度时,使用该装置可实现圈绕比、偏心距、叠层比、圈绕方向等方面的智能化、数字化调节,容量增大３０％~８０％,大幅减少条筒周转次数.指出:条筒容量扩增装置稳定可靠,增容效果良好,可减少接头,提高生产效率,降低换筒劳动强度,解决由于人工调整机械结构不当导致齿轮磕碰或间隙不适等问题,保证出条质量.关键词:条筒容量扩增;并条机;圈绕比;偏心距;叠层比;圈绕方向;出条质量中图分类号:TS１０３．８２文献标志码:B文章编号:１００１Ｇ９６３４(２０２３)０４Ｇ００１８Ｇ０３StorageCapacityExpansionDeviceofCansforDrawingFrameLIUDi,WANGDan,XIEHua,ZHENGShengyuan,LIXiang(ShenyangHongdaTextileMachineryCo．,Ltd．,Shenyang１１０１４１,China)Abstract:Inordertoincreasethecapacityofcansandreducethefrequencyofchangingcans,astoragecapacityexpansiondeviceofcansisdevelopedtoreplacethemechanicalstructureofthetraditionallowercancoilerindrawingframe,anditscompositionandworkingprincipleareinＧtroduced．TakingthemodificationoftheFA３０６Adrawingframeasanexample,thedesignschemeandthecalculationofrelatedparametersofthestoragecapacityexpansiondeviceofcansareanalyzed．Thetestshowsthat,withoutchangingthediameterandheightofcans,thestoragecapacityexpansiondeviceofcanscanbeusedtorealizetheintelligentanddigitaladjustＧmentofthecoilingratio,eccentricity,laminationratio,coilingdirectionandsoon,thecapacityincreasesby３０％~８０％,andtheturnovertimesofcanscanbegreatlyreduced．Itispointedoutthatthestoragecapacityexpansiondeviceofcansisstableandreliable,andthecapacityinＧcreaseeffectisgood．Itcanreducethejoint,improvetheproductionefficiency,reducethelaborintensityofchangingcans,solvetheproblemscausedbytheimpropermanualadjustmentofthemechanicalstructure,suchasgearbumporgapdiscomfort,andensurethesliverquality．KeyWords:stor...
